GSM modules

The AquiLite GSM module allows in conjunction with the well-proved AquiLite data logger probes and the known, user-friendly software AquiPro complete access to the measuring point (read out of data, programming of probe, change of settings, etc.) from your office via GSM. The modem in the measuring point is always online. So data can be updated and online-values retrieved at any time. But it can also be set in a sleep mode (activation only during data retrieval).

Easy installation and commissioning

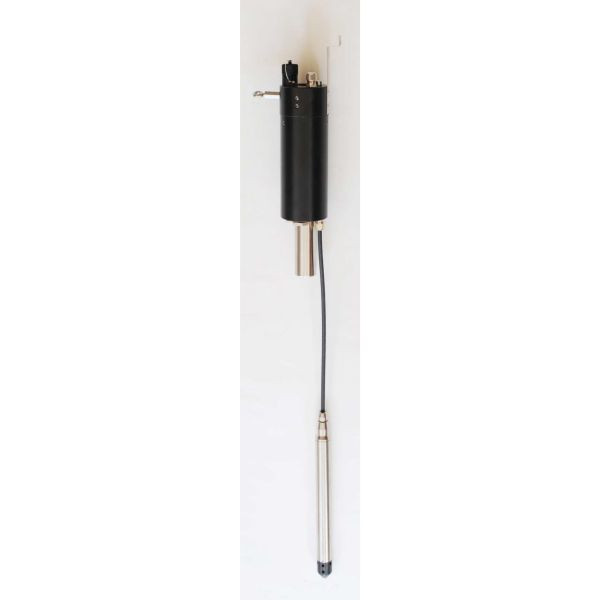

The installation of the GSM module in wells with a diameter of at least 4“ is possible without using any tools. A suspension aid for customary level cap is integrated. The installation in wells with a diameter of 2“ or 3“ is possible by the use of a special tube (ATF 02“). A level cap with a moulded round antenna is included in scope of delivery. This level cap can optionally be delivered exchangeable so that the module can also be adapted to other well diameters. Of course it is also possible to connect other types of antennas to the module. Controlling the water level by a water level meter is possible at all well diameters without removing the module.

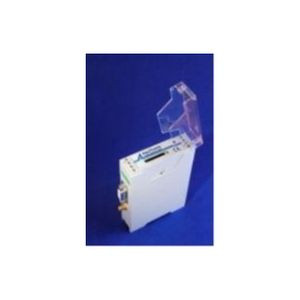

The AquiTronic GSM module can also be delivered in other construction types.

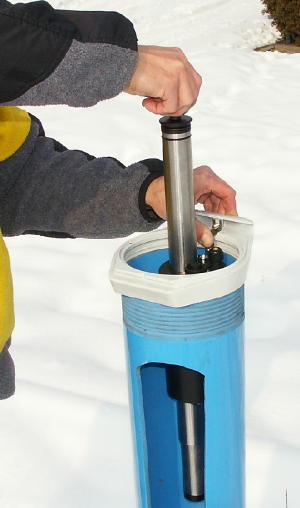

Easy change of battery

Modem and electronics are located in a waterproof housing. The batteries are situated in a separate, removable tube made of stainless steel. In order to change batteries you simply have to pull out the battery tube. The data loggers connected have got an own power supply. If the battery of the modem fails, the probe still works. There is also a version with an external power supply. Please contact us upon request!

The AquiLite probes can be connected via data bus wire. If the location permits, the monitoring sites can be networked by means of data cables. One modem is enough to retrieve all probes (analog, ISDN, GSM, FritzCard). If limit values are exceeded or fallen below you receive an alarm via SMS, e-mail or to your computer.

The GSM module is combinable with all types of AquiLite probes. The connection with the module can be fix or by a waterproof plug connection. So cable extensions are possible in case of the pluggable connection. The pressure compensation is done via the GSM module. The SIM-card provided by the customer can be exchanged at any time - operation possible with D1/D2/E-Plus.

Operator software AquiPro 6.XX with AquiPro COM 6.XX (possibly + AquiPro AUTOCOM 6.XX)

Programming and reading-out of the probe, contacting with the GSM module and data processing (conversion ASCII or EXCEL) is organized user-friendly and clearly, as usual. Contacting is done manually or automatically, whereby only the new data and the current online-value is read-out and stored.

The probes that is equipped with the GSM module can be captured in a data bank. Here probe number and phone number of the modem are stored. The individual call is carried out via mouse click. The measuring points that should be called automatically are determined in the data bank, too. So different measuring fields can be retrieved at fixed times. Contacting the modem is done via an analog modem, mobile phone (with integrated modem), ISDN (FritzCard). (card contract provided by the customer).
