product description
Base price for the standard item - see the data sheet for available configurations and options. Please contact us to request the product you want.

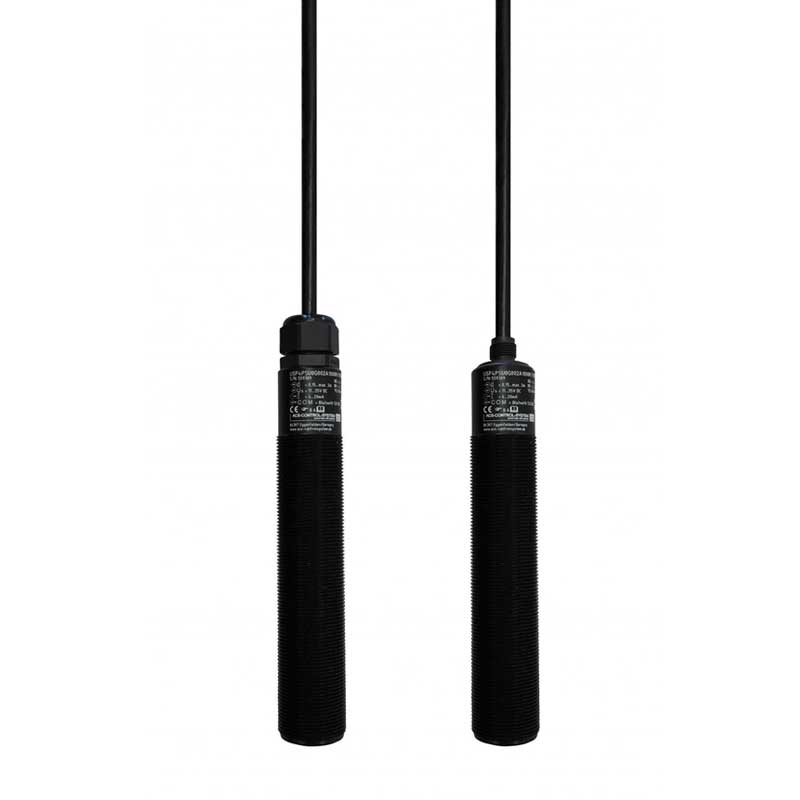

Ultrasonic sensor for non-contact level measurement in liquids and bulk solids
Product highlights:
Ultrasonic sensor for non-contact level measurement in liquids and bulk solids
Product highlights:
- Easy to operate via Bluetooth® and App
- Slender design
- Combinable with measuring tube, this avoids adjustment
- Non-contact level and volume measurement
- Flow measurement at open channels and measuring weirs
- Water and waste water sector
- Process industry
- Environmental technology
- Storage tanks, storage bunkers, silos
- Measuring ranges up to 8m
- Connector plug M12 or extension cable version
- High protection class IP65 / IP67 resp. IP68
- Process temperature range –20°C to +70°C
- Electronic 4…20mA in 2-wire-technology
- High accuracy ≤ 0,2%
- Operating interface Bluetooth® 5.0 LE
- Integrated overvoltage protection
- Envelope curve indication
- Temperature compensation and interference echo suppression
Downloads
data sheet German (0.66 MB)
data sheet English (0.80 MB)
