AMULT 4 | multi parameter probe
Product.Nr.: AMULT 4
Manufacturer: AquiTronic
EUR 2.537,00
incl. 19 % VAT
product description

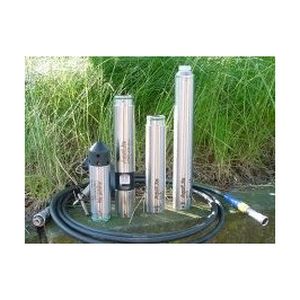

The AMULT 4 by AquiTroniv is a multi paramter probe with integrated data logger. This version measures the conductivity, the pH value and the temperature of water.
product highlights:
product details:
conductivity sensor:
pH sensor:
temperature sensor:
data logger:
product highlights:
- datalogger probe with 3 parameters
- parameter: conductivity, pH value, temperature
- flexible use in pump testes and long term measurements
- recording of well profiles
- batteries changeable by user
product details:
conductivity sensor:
- quadripole technique with temperature compensation
- pressure load: up to 10 bar
- measurement range: from 0 µS to 25,000 µS (other ranges uppon request)
- accuracy: 0.5% of the measured value ± 3 Digits
- resolution: from 0 µS to 1,000 µS; to 10,000 µS; to 25,000 µS
- temperature compensation, automativ reference temperature of 25°C or 20°C is adjustable via software
pH sensor:
- combination electrode, open aperture
- pressure load: up to 4 bar
- measurement range: 2 pH up to 12 pH
- accuracy: ± 0.1 pH (depending on the calibration interval)
- resolution: typically 0.1 pH
temperature sensor:
- measurement range: from -5°C to +45°C
- accuracy: ± 0,1 K
- resolution: 0,01 K
data logger:
- if the battery fales, there will no data be lost
- ring or standard memory are selectable as wanted
- storage memory: 230,000 data records
- recording:
- measurement rates: from 1 sec up to 12 hours
- programme or event controlling, selectable
Downloads
datasheet German (0.28 MB)
