GODOX 200 | oxygen converter
Product.Nr.: GODOX 200
Manufacturer: Greisinger
EUR 1.686,00
incl. 19 % VAT
product description
product highlights:
- comes without electrolyte
- robust measurign system
- fully pressure and temperature compensated
- measurement in depth up to 30 m possible
- calibration in many applications only once a year
- no flow required
- 2 4..20 mA (or 0..5 V) outputs: concentration and saturation
- low-maintenance
- measuring ranges (both can be used simultaneously):
- oxygen concentration: 0 mg/l to 20 mg/l (=ppm)
- oxygen saturation: 0% to 200% O2
- output signal: 4 mA to 20 mA or 0 V to 5 V respectively (changeable)
- operating temperature: 0°C to 65°C
- dimensions sensor:
- length: 225 mm
- mounting length: 70.5 mm
- diameter: 42.1 mm
- mounting diameter 28 mm
- cable length: 5 m
- scope of delivery:

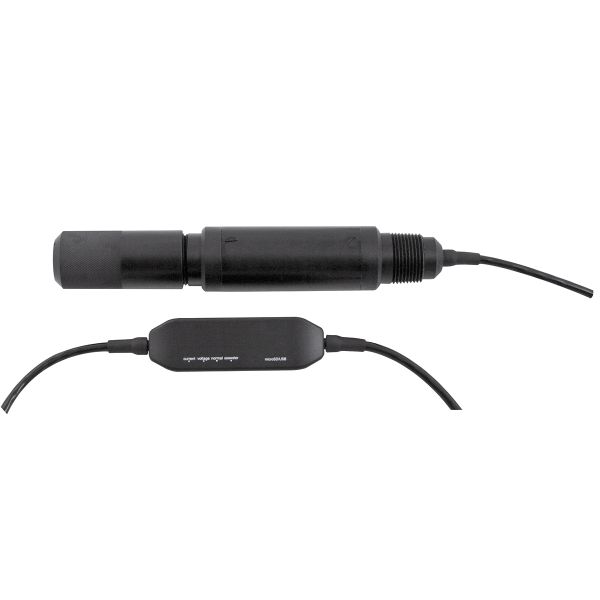

- transmitter: sensor body and evaluation, connected via cable
- storage cap
Downloads
datasheet German (0.59 MB)
datasheet English (0.47 MB)
instruction manual German (0.62 MB)
instruction manual English (0.83 MB)
