product description
Inline fitting EA 2090 by Martens
product highlights:
product highlights:
- used to mount electrochemical sensors (e.g. pH and redox electrodes, gless conductivity measuring cells, compensation thermometers)
- installation in open channels or containers
- used for protection of the built-in sensor against breakage
- allows measurement in different measuring depths
- can be addapted to the operating conditions using options and accessories
- process material: PP. seal FMP
- pressure resistance: max. 1 bar at 90°C
- operating temperature: 0°C to 95°C
- protection: IP 65
- with PG 13.5 screw-in thread

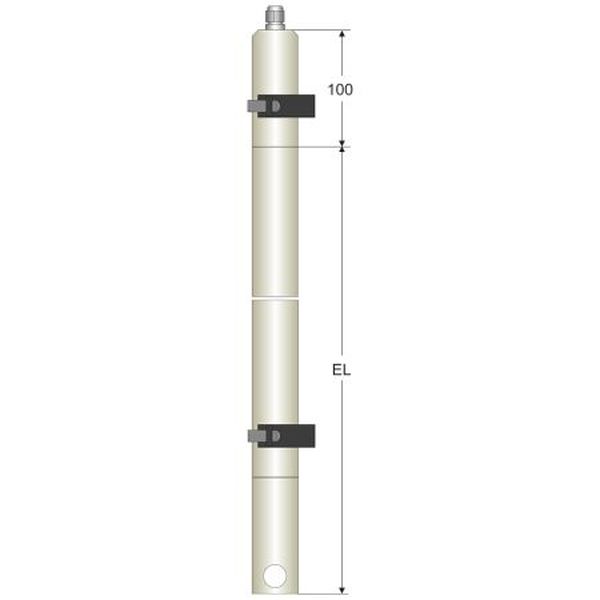

- installation length: 120 mm
Downloads
datasheet German (0.41 MB)
datasheet English (0.56 MB)
