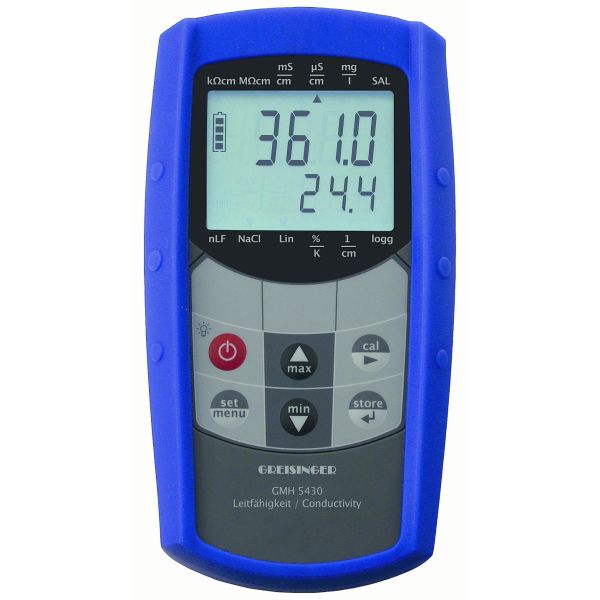

product description
product highlights:
- waterproof
- measurement of conductivity, resistance, salinity and TDS (dry residue of filtrate)
- large double display with background illumination
- robust protective cover made of silicon (available in blue and red)
- incl. test protocol (please order work certificate of calibration seperately)
product details:
application:
- industry and craft
- measurements in waters and aquaristics, fish farming
- drinking water, process monitoring, soil measurement
- food production and monitoring
- quality assurance
- in laboratories of medicine, pharmacy and chemistry
measuring ranges:
- Spec. Resistance: 0.005..500.0 kOhm * cm (depending on cell constants)
- TDS: 0..5000 mg / l (depending on cell constants)
- Salinity: 0.0..70.0 (g salt / kg water)
- Temperature: -5.0 .. + 100.0 °C, Pt1000 or NTC 10 k
connections:
- Interface / ext. care: 4-pole bayonet connection for serial interface and supply
(with accessories: USB adapter USB 5100) - conductivity, temperature:
- 1 x 7-pole bayonet connection for connecting different measuring cells
- supported temperature sensors: Pt1000 or NTC 10 k
working conditions:
- temperature: in a range between -25°C and +50°C
- relative humidity: up to 95% r.h., not condensing
scope of delivery:
- device
- K 50 BL
- battery
- test report
- operating instructions
