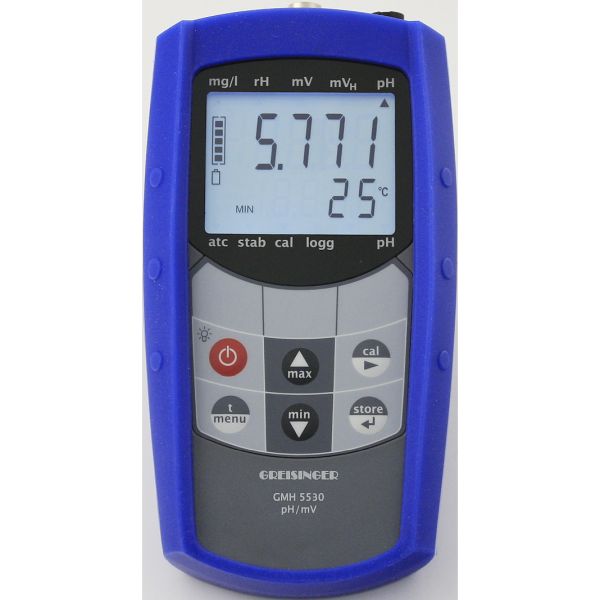

GMH 5530 | handheld measurement device
Product.Nr.: GMH 5530
Manufacturer: Greisinger
EUR 344,00
incl. 19 % VAT
product description
product highlights:
- waterproof
- serial interface
- GLP-function (good laboratory practice)
- robust protective cover made out of silicon (available in the colours blue and red)
- arge double display
- high resolution (0.001 pH / 0.1 mV)
- background illumination
- calibration producol included (please order work certificate of calibration separately)
- water measurements, fishkeeping
- aquafarming
- drinking water monitoring, process controll, soil measurements
- food production and monitoring
- laboratory: medicine, pharmaceutics, chemistry
- quality management
pH calibration:
- choosable between 1-, 2- or 3-point calibration with characteristics bend for Greisinger standard buffer, buffer to DIN 19266
- or manual buffer input
- the used buffer is detected automatically - the temperature dependency of the buffer is automatically compensated
- the device asks for a recalibration after a selectable time period
- selectable time periods: 1 to 365 days or inactive
- pH: from -2.000 pH to 16.000 pH (resolution selectable)
- temperature:
- from -5°C up to +150°C
- from 23°F up to 302°F
- pH/Redox:
- BNC-female connector
- compatible to standard BNC-plugs and waterproof BNC-plugs
- additional banana-jack (4 mm) for separate reference electrode
- input resistance: 10^12 Ohm
- temperature:
- 2 banana-jacks (4 mm) for temperature probes
- usable temperature probes: Pt 1000 or NTC 10K
- interface/supply:
- 4 pole bayonet connector for serial interface and supply
- with accessory USB 5100
device without electrode, senosor and accessories
