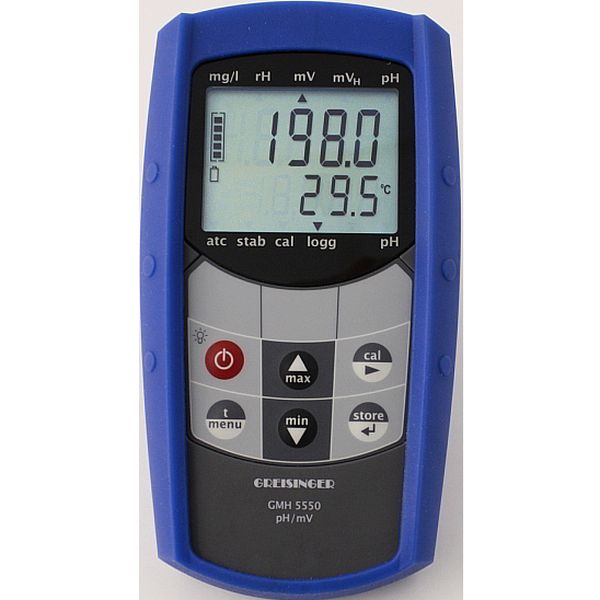

GMH 5550 | handheld measurement device
Product.Nr.: GMH 5550
Manufacturer: Greisinger
EUR 519,00
incl. 19 % VAT
product description
product highlights:
- waterproof
- serial interface
- with data logger
- GLP-function (good laboratory practice)
- robust protective cover made out of silicon (available in the colours blue and red)
- arge double display
- high resolution (0.001 pH / 0.1 mV)
- background illumination
- calibration producol included (please order work certificate of calibration separately)
- water measurements, fishkeeping
- aquafarming
- drinking water monitoring, process controll, soil measurements
- food production and monitoring
- laboratory: medicine, pharmaceutics, chemistry
- quality management
data logger:
- with measuring point input
- adjustable cycle time: from 1 sec up to 1 hour
- recording time: 416 dayt at intervall 1 h
- data logger
- cyclic: 10,000 data sets
- manual: 1,000 data sets
pH calibration:
- choosable between 1-, 2- or 3-point calibration with characteristics bend for Greisinger standard buffer, buffer to DIN 19266
- or manual buffer input
- the used buffer is detected automatically - the temperature dependency of the buffer is automatically compensated
- the device asks for a recalibration after a selectable time period
- selectable time periods: 1 to 365 days or inactive
- pH: from -2.000 pH to 16.000 pH (resolution selectable)
- temperature:
- from -5°C up to +150°C
- from 23°F up to 302°F
- pH/Redox:
- BNC-female connector
- compatible to standard BNC-plugs and waterproof BNC-plugs
- additional banana-jack (4 mm) for separate reference electrode
- input resistance: 10^12 Ohm
- temperature:
- 2 banana-jacks (4 mm) for temperature probes
- usable temperature probes: Pt 1000 or NTC 10K
- interface/supply:
- 4 pole bayonet connector for serial interface and supply
- with accessory USB 5100
device without electrode, senosor and accessories
Downloads
instruction manual German (1.51 MB)
instruction manual English (1.51 MB)
data sheet German (0.33 MB)
data sheet English (0.24 MB)
