G 1501 | handheld measurement device incl. electrode


G 1501 | handheld measurement device incl. electrode

Product.Nr.: G 1501

Manufacturer: Greisinger

EUR 179,50
incl. 19 % VAT

  • delivery time Fertigungszeit variiert - bitte erfragen!

construction type G 1501

works calibration certificate (price per electrode/sensor/probe and device)

The manufacturing period for work calibration certificates is usually about 1 to 2 weeks.

product description

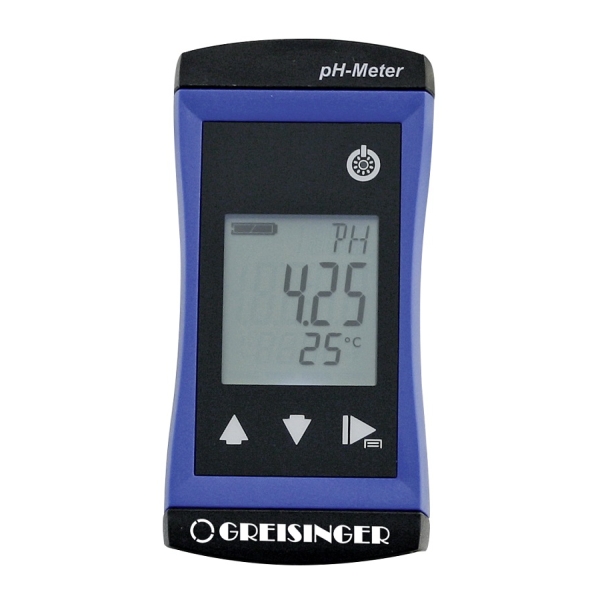

waterproof handheld pH/redox measurement device G 1501 by Greisinger with Pt 1000 input and alarm, inclusive pH electrode GE 114-WD

product highlights:

  • precise, fast and reliable
  • dust- and water-proof according to IP 65/67
  • with redox (ORP) and temperature measurement
  • alarm function
  • BNC connection for interchangeable electrodes
  • compact housing
  • ergonomic design
  • robust, long battery life
  • 3-line display
  • overhead display at the push of a button
  • backlit display

application:

  • aquarium
  • aquaculture
  • plant farming
  • agriculture
  • laboratories
  • quality assurance
  • service
  • food

product details:

measuring range:

  • pH: 0.00 pH to 14.00 pH
  • temperature:

    • -5.0°C to +105°C
    • 23.0°F to 221.0°F

  • redox (ORP):

    • -1500 mV to +1500 mV
    • -1293 mVH to 1707 mVH
other:

  • resolution: 0.01 pH
  • housing: break-proof ABS housing
  • dimensions without sensor connection: 108 mm x 54 mm x 28 mm (H x W x T)
  • working  temperature:

    • display device: -20°C to +50°C
    • electrode: 0°C bis 60°C

  • display:

    • 3-line with battery level indicator
    • backlit
    • protected by break-resistant glass
    • overhead display at the push of a button

  • sensor/measuring input:

    • pH electrode can be connected via BNC
    • standars GE 114-WD
    • temperature compensation adjustable on the device

  • scope of delivery:

    • device
    • electrode
    • test report
    • 2 x batteries
    • operating instructions

Downloads

instruction manual German (0.47 MB)

instruction manual English (0.46 MB)

data sheet German (0.33 MB)

data sheet English (0.25 MB)
